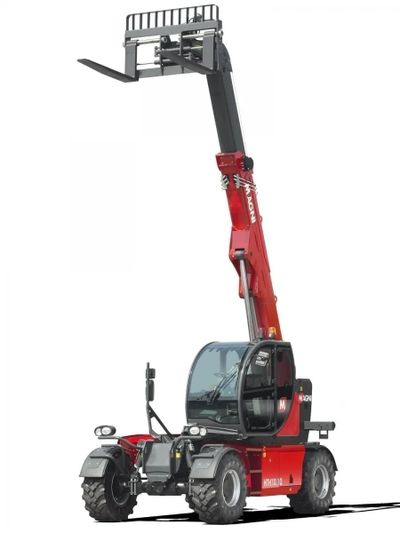

Magni HTH 16.10 telescopic handler

---

 The HTH 16.10 telescopic handler is ideal for moving large, bulky loads in complete safety. Able to lift up to 16 tonnes, it is compatible with a wide range of accessories, making it extremely versatile. Equipped with an RFID system which provides automatic recognition of the various attachments used, this telescopic handler is able to meet a wide range of applications in heavy industry. Its four-wheel drive system, three manoeuvring modes and high ground clearance makes it highly manoeuvrable on all terrains.

TECHNICAL FEATURES

Lifting capacity: 35.273 lbs

Capacity at maximum height: 19.841 lbs

Lifting height: 31" 2'

Outreach: 5.10 m

Engine: Volvo TAD 572 VE - Tier 4f

Nominal power: 160 kW - 218 Hp @ 2,300 rpm

Number of gears: 2/2

Hydraulic system: Load Sensing 350 bar

Length: 251.2 in

Width: 100.4 in

Clear light from the ground: 17.3 in

Empty weight: 45,195 lbs

Speed of movement: 25 km/h

Air conditioning as standard: Yes

Automatic accessory recognition: Yes

STANDARDS MET

CE Certification

EN 1459-2: concerning standards for slewing variable-reach trucks

EN 13000: concerning standards for hydraulic cranes

FOPS Level 2/ROPS

UE 2016/1628: concerning engine emissions standards

Rates

Day = 8 Hours

$1,000

Week (7 Days) = 40 Hours

$4,000

Month (28 Days) = 160 Hours

$11,000

* Rate flexibility options available for long term rentals.

Call 907-987-4312  for availability.
