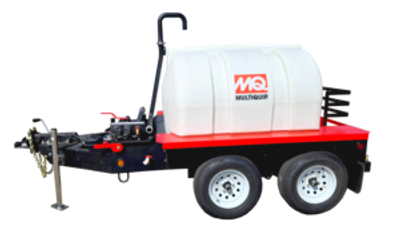

Multiquip WT5-Series 550-gallon Water Trailer

---

 The new Gen 2 550-gallon WT5-Series water trailer with hydraulic brakes delivers unmatched durability with 50% thicker material and a specially engineered tank design making it less susceptible to cracks and damages, while maintaining its shape with a sleeker and more modern aesthetics. The water pump is deliberately set low in the frame, providing enhanced protection. The manifold system is equipped with the same seamless switching function between suction and discharge that our customers have come to expect and love. It is equipped with two 2" ports, one 1-1/2" port, a rear spray bar, and comes standard with a 2 x 20' quick coupler suction hose and a 2 x 50' quick coupler discharge hose that are stored neatly in a hose bin. It is ideal for dust control, firefighting, construction, and more.

• Store up to 550 gallons of clean water in a durable 3/8" polypropylene water tank
• Dependable performance using Multiquip QP2H 2" centrifugal pump
• Uniquely molded shape and 50% thicker material makes tank stronger and resistant to warping and cracking
• In-frame water pump provides added protection from damage
• Intuitive manifold system allows seamless switching between suction and discharge simply by turning a lever
• Rear spray bar delivers efficient water distribution with coverage up to 16’ x 62’ area
• Quickly fill tank through a 2” diameter steel pipe with quick discharge coupler or through the 12” fill hole on top
• Heavy duty tandem axle trailer
• Ideal for dust control, emergency firefighting, construction, agricultural support and equipment wash down
• Comes standard with convenient Hose Kit provided (2" x 20' Suction & 2" x 50' Discharge)
• Made in the U.S.

Engine

Model Honda GX120

Power – HP 3.5

Fuel Tank – Gallons 0.66

Fuel Consumption – GPM 0.18

Operating Speed – RPM 3.600

Water Tank Specifications:

Capacity 550 Gal.

Water Tank Material Polypropylene - 3/8" wall

Fill Port 12" vented port

Fill Rate 3.5 min full fill

Fill Methods Municipal fire hydrant — QD; 1.5" and 2" Q/D cam and groove; one standard garden hose adapters

Delivery Methods 1.5" & 2" Left/Rt. (QD Couplers), three garden hose valves, rear spray bar

Pump Specifications

Pump Model Multiquip QP2H 2 in.

Pump Type Centrifugal

Flow / Head 158 GPM / 115 Ft.

Dimensions & Weights

Operating Weight 9100 lb        4128 kg

Shipping Weight 2200 lb 998 kg

Pump Specifications

Pump Model Multiquip QP2H 2 in.

Pump Type Centrifugal

Flow / Head 158 GPM / 115 Ft.

Dimensions & Weights

Operating Weight 9100 lb       4128 kg

Shipping Weight 2200 lb 998 kg

Rates

Day = 8 Hours

$250

* Rate flexibility options available for long term rentals.

Call 907-987-4312  for availability.
