SANY SSR120C‑8

---

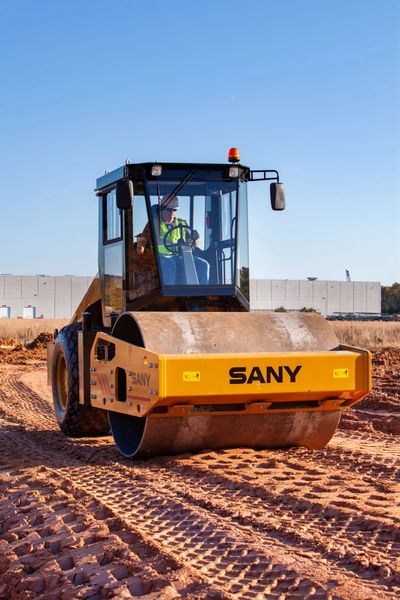

The SANY SSR120C-8 is a single drum roller designed to have a minimal learning curve and long component life. The simplicity of this machine makes it great for inexperienced road construction equipment operators to train on, offering intuitive controls that make for a natural feel. Powered by a 145 hp Cummins engine and weighing in at 25,529 lbs, the SSR120C-8 roller gives you the right power and weight you need to reach your density target.

• Powerful Cummins engine
• 62,947 lbs of centrifugal force
• Comes standard with a removable padfoot shell kit
• Comfortable enclosed cab, with air suspension heated seat

Engine

Engine Model

Cummins QSB4.5

Emission

T4f

Rated Gross Power

162.2 MHP @ 36.67 Hz

160 HP @ 2,200 RPM

Rated Net Power

147.01 HP @ 36.67 Hz

145 HP @ 2,200 RPM

Max Torque

624 N.m

460 lb-ft

Low Idle / High Idle

11.67 Hz / 39.77 Hz

700 RPM / 2,386 RPM

Displacement

4.5 L

1.2 gal

Stroke

124 mm

4.89”

Bore

107 mm

4.21”

# of Cylinders

4

Max. Travel Speed

0~4.1/0~5.2 km/h;

0~7.1/0~10 km/h

0~2.6/0~3.2 mph; 0~4.4/0~6.2 mph

Weights

Operating Weight

11,709 kg

25,529 lb

Weight at Drum

6,509 kg

14,350 lb

Weight at Axle

5,200 kg

11,464 lb

Weight with Padfoot Kit

13,209 kg

29,121 lbs

Vibratory System

Frequency

32/36 Hz

Amplitude

1.8 / 0.9 mm

0.07 / 0.04 in.

Static Linear Load

329 N/cm

188 lbs/in

Centrifugal Force

280 / 178 kN

62,947 / 40,016 lbs

Drive System

Tires

23.1-26-8PR

Gradeability Smooth Drum

40%

Gradeability Padfoot

30%

Articulation

+/- 35º

Oscillation Angle

+/- 8º

Dimensions

Overall Length

5,750 mm

18' 10"

Wheelbase

2,950 mm

9’ 8”

Overall Height Smooth Drum

3,190 mm

10' 6"

Overall Height with Padfoot

3,390 mm

11’ 1”

Drum Width

2,130 mm

84"

Overall Width

2,240 mm

7' 4"

Ground Clearance

480 mm

18.9"

Drum Diameter

1,500 mm

59.1"

Drum Shell Thickness

25 mm

1.0"

Min. Outside Turning Radius

5,800 mm

19’ 1”

Capacity

Fuel Tank

200 L

52.8 gal

Hydraulic Tank

120 L

31.7 gal

Day = 8 Hours

$1,000

Week (7 Days) = 40 Hours

$3,000

Month (28 Days) = 160 Hours

$8,000

* Rate flexibility options available for long term rentals.

Call 907-987-4312  for availability.
