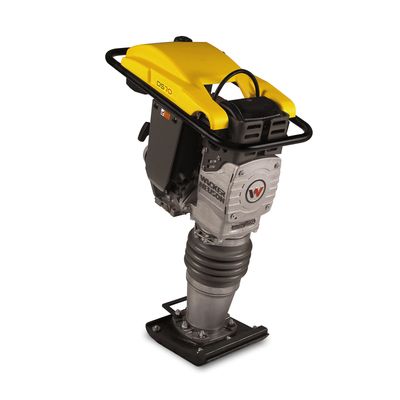

Wacker Neuson DS70 Diesel Rammer

---

The diesel rammer by Wacker Neuson rounds off your diesel fleet. The DS70 is a well-balanced machine with compact dimensions and low CO emissions. This also makes it well-suited for compaction work in trenches. The DS70 offers strong performance for compaction of cohesive, mixed and granular soils.

Highlights

• Diesel drive
• Extreme performance efficiency
• Just one lever for starting, idling and stopping.

Technical Data

Mechanical - Output Details

Number of blows 667.0 1/min

Area capacity 174.0 m2/h

Forward Running 8.8 m/min

Power of impact 21.0 kN

Mechanical Details

Length 740.0 mm

Length Ramming Shoe 340.0 mm

Width 370.0 mm

Width Ramming Shoe 330.0 mm

Height 1,000.0 mm

Weight 85.00 kg

Operating weight 86.4 kg

Stroke at tamper 75.0 mm

Environment Data

Operating temperature range -10 - 40 °C

Sound power LWA, guaranteed 108.0 dB(A)

Sound power LWA (Standard) EN 500-4

HAV summation (average value) 11.9 m/s2

HAV summation (Standard) EN 500-4

Operating Fluids

Oil specification SAE 10W-40

Oil volume 0.900 l

Rates

Day = 8 Hours

$100

Week (7 Days) = 40 Hours

$400

Month (28 Days) = 160 Hours

$1,000

* Rate flexibility options available for long term rentals.

Call 907-987-4312  for availability.
